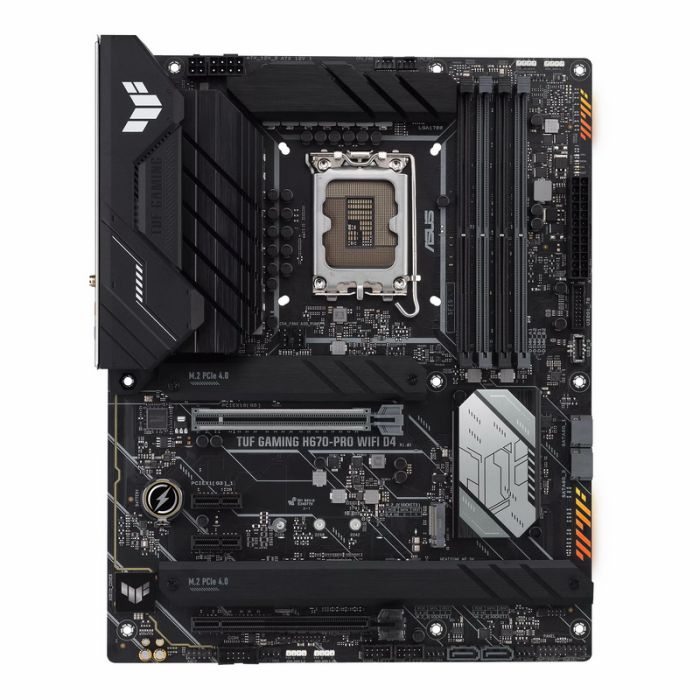

Asus TUF H670-Pro D4 Intel Socket LGA1700 ATX Gaming Motherboard | PCIe 5.0 M.2 NVMe | Intel WiFi 6, 2.5 GB Ethernet | HDMI | DisplayPort | SATA 6 Gbp/s | USB 3.2 Gen 2 | Aura Sync RGB Headers

Intel H670 (LGA 1700) ATX motherboard with PCIe 5.0 slot, four PCIe 4.0 M.2 slots, 14+1 DrMOS, Intel 2.5Gb Ethernet, DisplayPort, HDMI, front USB 3.2 Gen 1 Type-C, Aura Sync

• Intel LGA 1700 socket: Ready for 12th Gen Intel processors
• Enhanced power solution: 14+1 DrMOS, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 4 utility
• Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C, front panel header for USB 3.2 Gen 1 Type-C, and Thunderbolt 4 header support
• Made for online gaming: Intel WiFi 6, Intel 2.5Gb Ethernet, TUF LANGuard
• Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

CPU

Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

H670

Memory

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

Graphics

1 x DisplayPort

1 x HDMI port

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel H670 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

Please check the PCIe bifurcation table on the support site.

Supports Intel Optane Memory H Series on PCH-attached PCIe slot

Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel 12th Gen processors support PCIe 4.0 x4 mode

Intel H670 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Intel Rapid Storage Technology supports NVMe RAID 0/1/5, and SATA RAID 0/1/5/10.

Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Ethernet

1 x Intel 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

USB

Rear USB: Total 7 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

Front USB: Total 7 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Rear optical S/PDIF outport

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio Cover

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A )

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi Module

1 x Intel 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- Safe slot

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- CPU Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- AURA RGB header

- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

TUF GAMING CPU-Z

DTS Audio Processing

MyAsus

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cable

Miscellaneous

1 x ASUS Wi-Fi moving antennas

2 x M.2 Rubber Packages

1 x M.2 SSD screw package

1 x TUF GAMING sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User guide

Form Factor

30.5cm x 24.4cm
